Pure Distilling Output Cooler Instructions

Cools spirit as it exits the Reflux Condenser

Assembly Instructions

• The Output Cooler replaces the standard product arm, remove the product arm and connect the Output Cooler by rotating in a counterclockwise motion. The connection to the condenser only needs to be finger tight, do not overtighten.

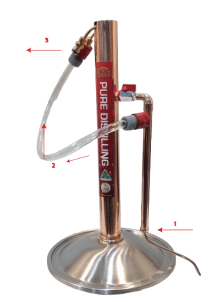

Please refer to the above diagram for water connection setup

• Connection 1 – Attach the cold water inlet from your tap to the bottom of the cooler.
• Connection 2 – Use the short hose supplied with the Output Cooler to connect the top of the cooler to the inlet of the Reflux Condenser (either side is acceptable).
• Connection 3 – Connects to the outlet of the condenser, allowing water to exit the system.

Congratulations you are done - Simply run the Reflux Condenser as per normal, and enjoy!
