Series X.1 Kegerator Quadruple Tap 4x Taps

Series X Kegerator - Quadruple Tap 4 Tap Kegerator

The future is here, the all new Series X Kegerator. The pinnacle standard of home beverage dispensing! Complete with EVABarrier Dual Walled beer and gas hose. Featuring all duotight compatible push in fittings and the latest MK4 Regulator.

Get the absolute maximum kegs on tap with an almost identical footprint to the previous Series 4 Model. We've designed this Kegerator to fit FOUR 19L Kegs. Don't settle for old tech, get the more electronically efficient Series X kegerator.

NEW: Improved Features compared to the Series 4 Kegerator

• 10% More Energy Efficient
• 15% Faster Cooling
• 40% Thicker Side Walls
• 25% Larger Condenser
• 30% Larger Evaporator
• Fits up to 4x 19L Kegs

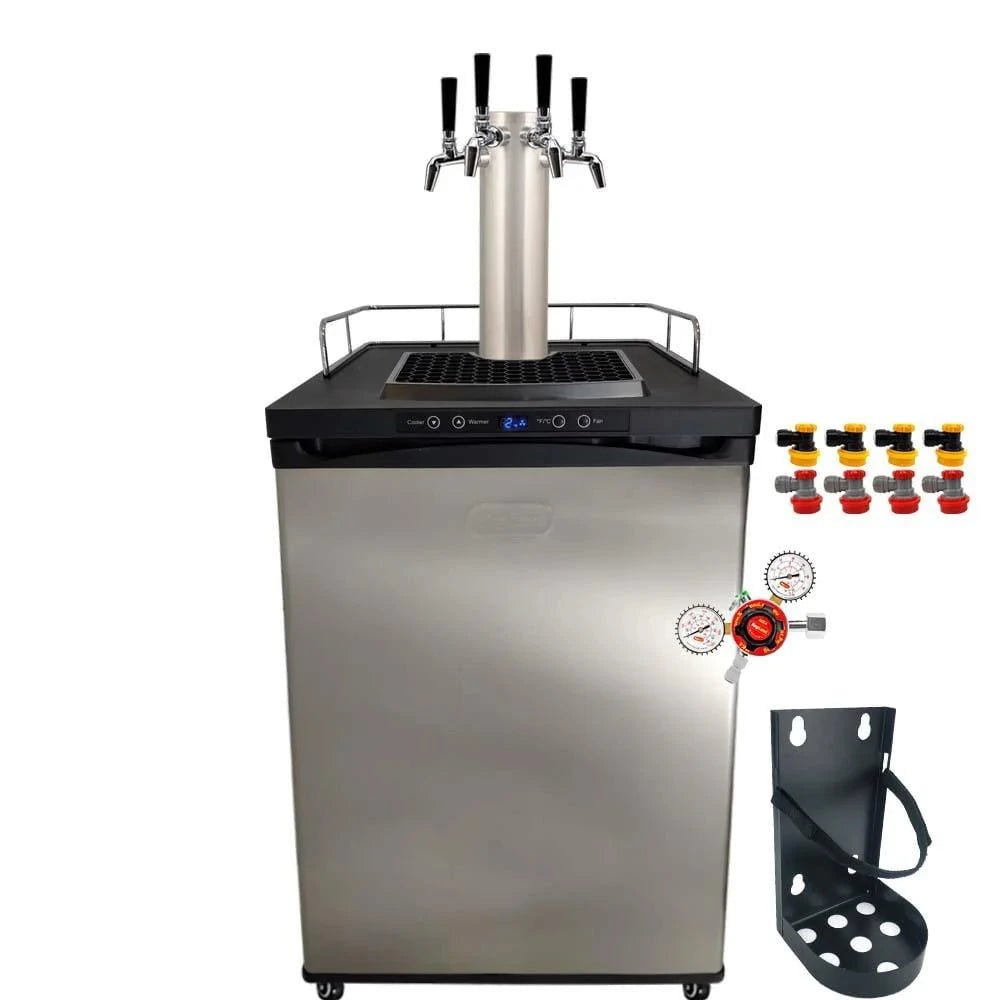

This Bundle Comprises of the following:

• Series X - Kegerator Base Fridge with Regulator which includes:
• 1 x Series X Kegerator Fridge with Font Fan Switch
• 1 x CO2 Regulator
• 1 x HoneyComb Reinforced Black Plastic Drip Tray
• 1 x Stainless Steel Guard Rail
• 1 x Font Plug
• 1 x Reinforced four point anchored castor wheels with bolts. (2 Locking, 2 Non-Lockable)
• 1 x CO2 Cylinder Bracket Holder for 2.6kg Cylinder (does not fit 6.0kg bottle)
• Quadruple Tap Font Kit which includes:
• 1 x Quadruple Tap - Brushed Stainless Steel Font
• 4 x duotight Compatible Short Shank
• 4 x 6.5mm x 8mm duotight reducer for short shank
• 4 x Black Plastic Tap Handle
• 2 x Extended lines of - 4mm ID x 8mm OD Evabarrier Beer Lines (we recommend balancing your lines to 1.5m to 2.0m per beer line)
• 1 x Extended line 5mm ID x 8mm OD Evabarrier Gas Line
• 3 x duotight 8mm Tee Piece to split gas
• 4 x Metric M5 stainless screws to secure the font to the fridge
• 4 x NukaTap - Stainless Steel Forward Sealing Taps

Dimensions:

• 600mm Wide
• 650mm Deep excluding CO2 bracket
• 820mm Deep including CO2 bracket (only suitable for 2.6kg CO2 bottle)
• 840mm Height (excluding castor wheels and the height of guard rail, drip tray or font)
• 890mm Height of the fridge part (including castor wheels but excluding the height of guard rail, drip tray or font)

Temperature Set Points: -5 to 28°C

NB: the kegerator does not "heat", it only cools so if the set point is higher than the outside temperature, the fridge will stay the outside temperature. Additionally the internal temperature of the fridge is subject to its external environment, if it's 40°C and in the sun it won't cool efficiently in the same way a normal fridge would not cope well. Like a normal fridge, it's designed for indoor use rather than outdoors unless you are in an area that does not suffer from extreme temperatures or humidity (which is probably nowhere in Australia).

Minimum clearance around the Series X

The Series X kegerator has radiators in the left- and right-hand walls of the kegerator. These radiators need to be well ventilated so that heat can be dissipated from within the kegerator to the external environment. A minimum of 100mm clearance is required on the left- and right-hand side and the back of the kegerator. Failure to leave this clearance may void the warranty as it is essential for proper cooling and can cause high electrical consumption and may cause the kegerator to fail prematurely.
