T500 Turbo 500 Create+ Distilling System: Stainless Steel Column & Condenser + Boiler

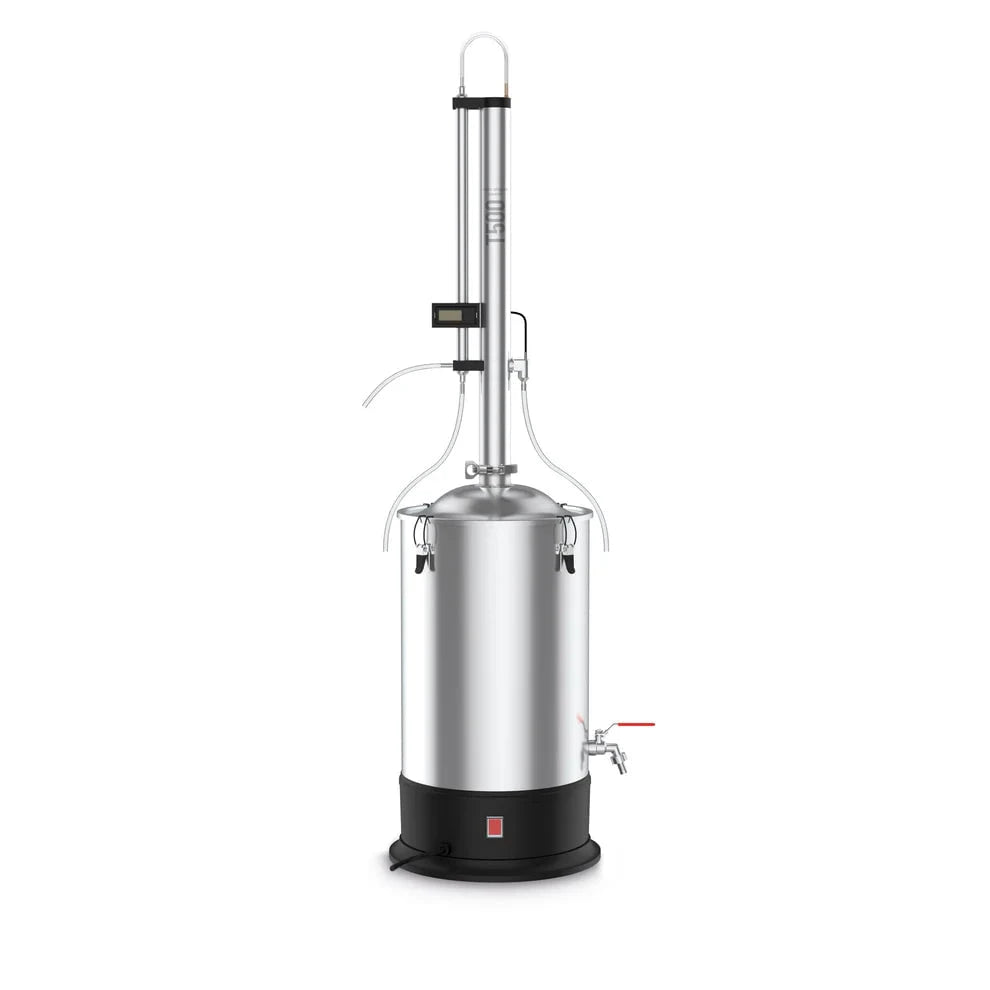

Engineered for simplicity and efficiency, the Create+ T500 Column & Condenser and Create + Boiler 25 L bundle provides a high-performance reflux distilling system that produces exceptionally clean distillate.

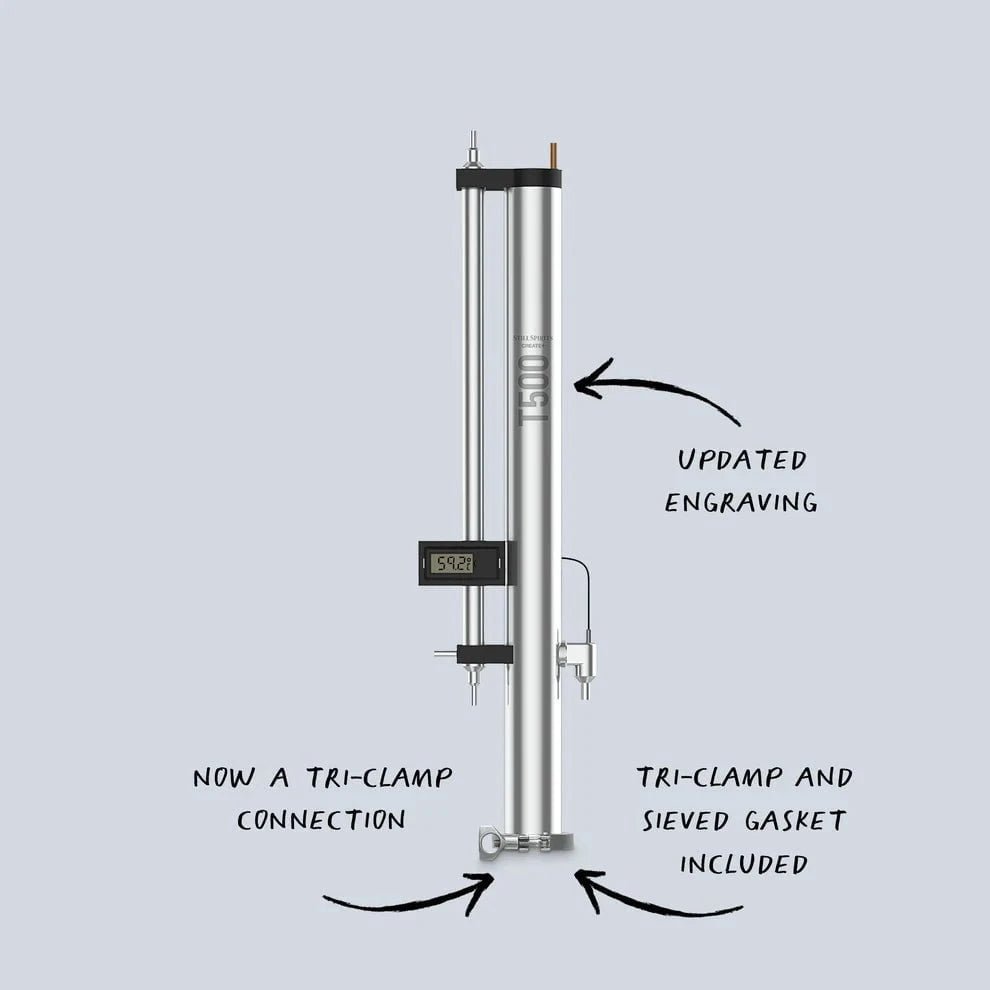

It's 2" tri-clamp connection allows for it to be connected to 2" tri-clamp accessories, so your customers have the option to experiment with different setups and attachments. The T500 features a cutting-edge design that incorporates pre-packed copper and stainless-steel saddles. This innovative amalgamation ensures optimal vapour reflux, facilitating the production of superior-quality distillate. Ideal for both novice and experienced distillers, the T500 redefines convenience in home distillation, delivering unmatched results with a seamless blend of form and function.

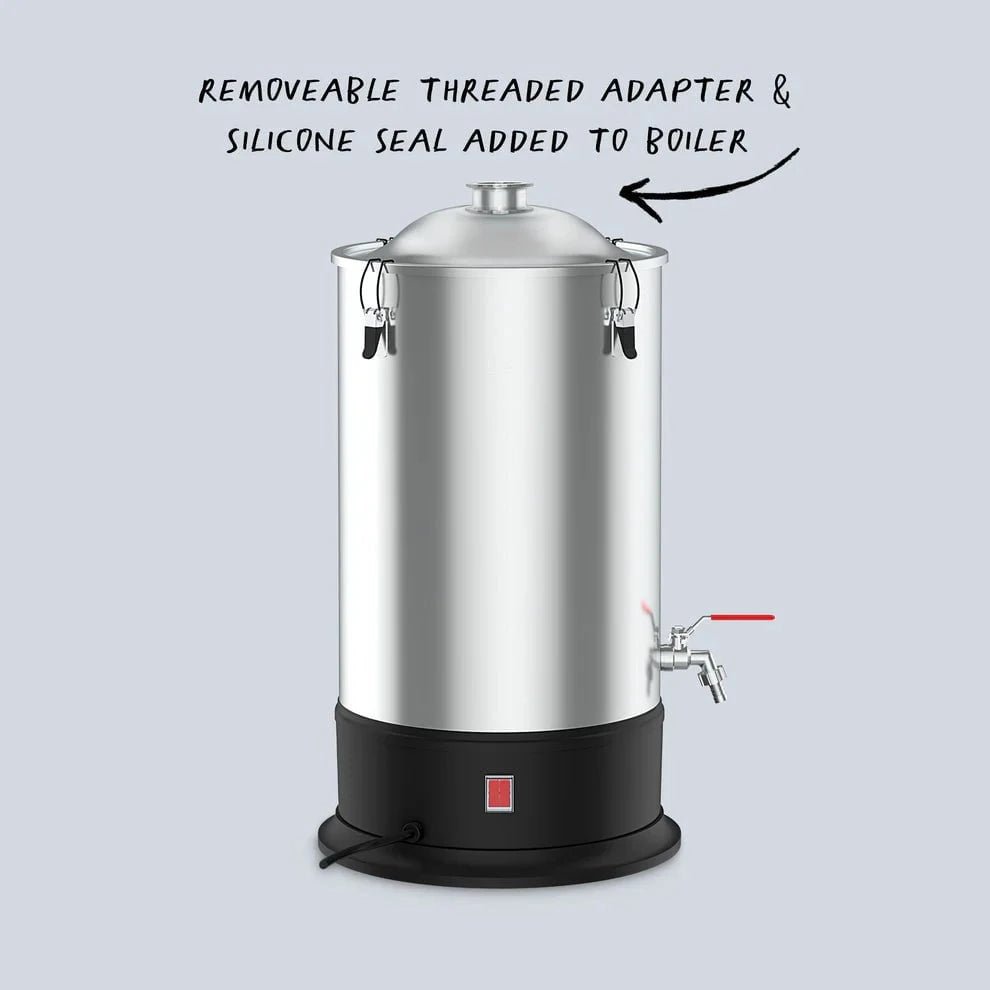

With a maximum capacity of 25 litres, the Boiler 25 L features dual element control switches, providing more control during distillation. It comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so your customers can experiment with different setups and attachments.

Features:

• All-in-one reflux column and condenser + boiler
• For intermediate-advanced distilling
• Suitable for distilling water and alcohol
• Designed in New Zealand
• 304 Grade stainless steel construction
• Connects to 2" tri-clamp distilling accessories
• Column packed with stainless steel and copper saddles
• Faucet adaptor for ease of cooling water connection
• High temperature resistent food grade silicone
• Dual boiler element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W. When one switch is in the OFF position, it will only consume 1100W of power.
• Boil dry reset
• Thermal cut out fuse
• Waste discharge tap with a stainless-steel ball valve
• Boiler lid with 48 mm opening
• 25 L Boiler capacity

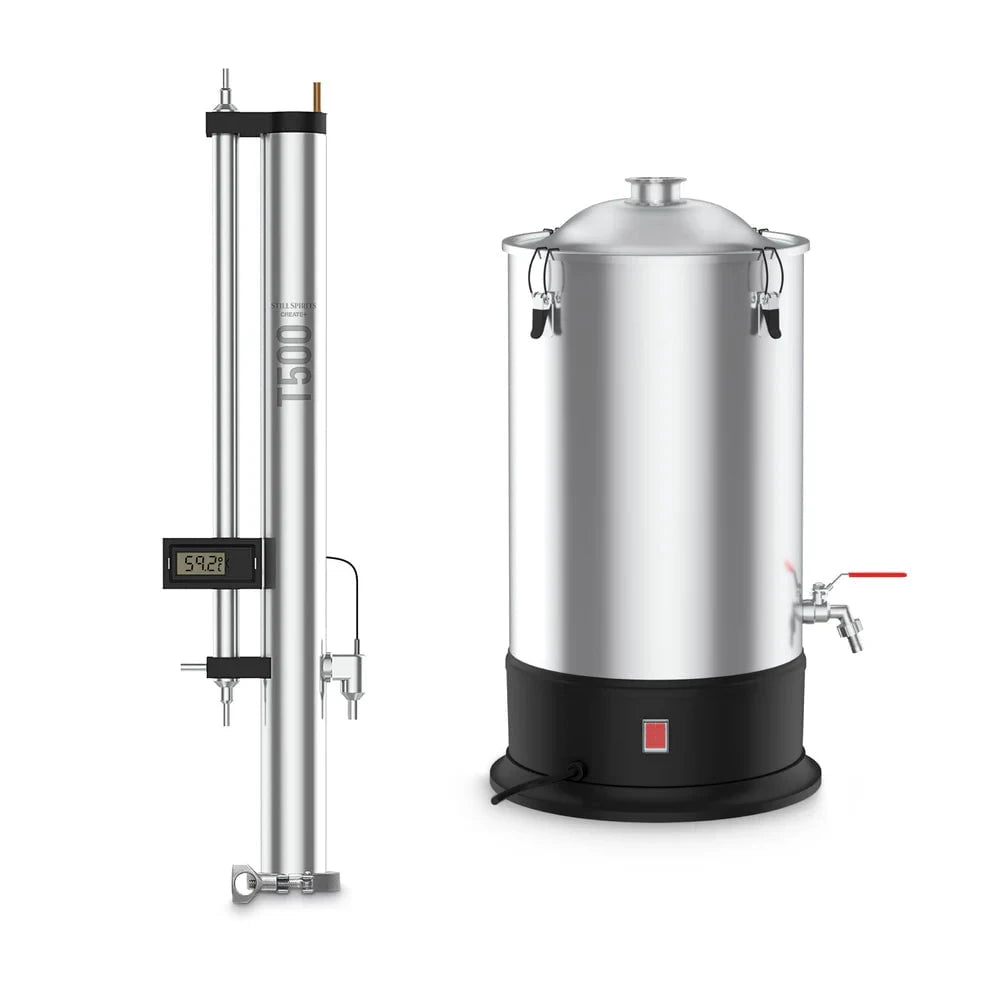

Included:

• Create+ T500 Column & Condenser - Stainless Steel
• Create+ T500 Boiler

Specifications

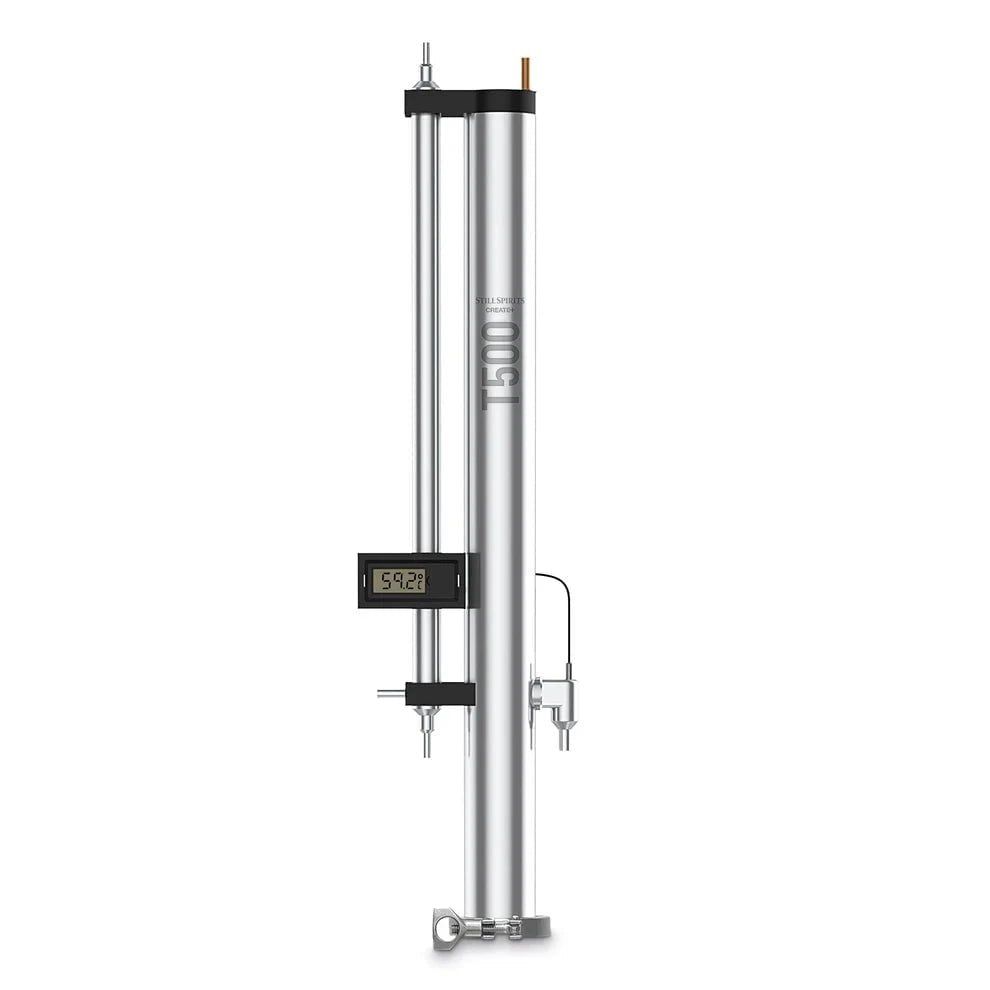

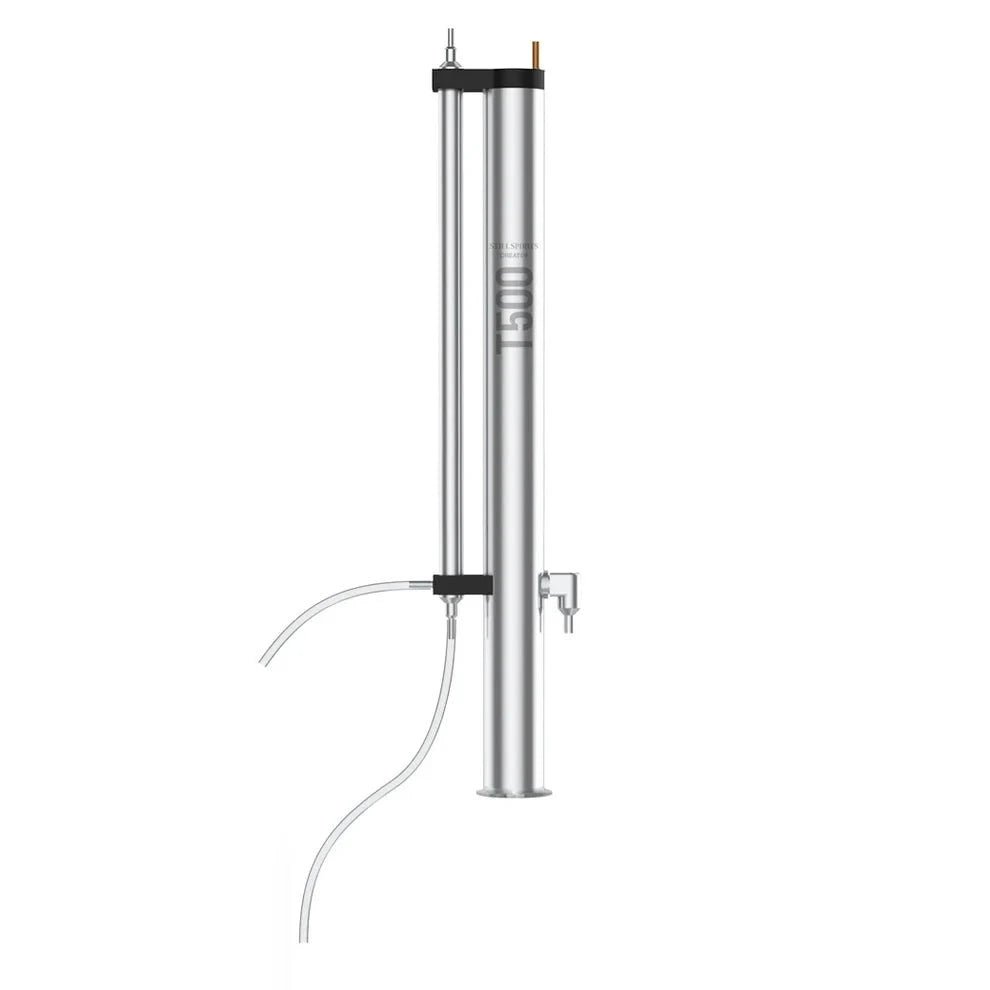

T500 Column & Condenser:

• Dimensions: H 69 cm x W 8.5 cm x D 16 cm
• Weight: 2.3-2.99 kg
• Warranty: 3 years
• Ease of Use: Intermediate
• Average water use during distillation: You will use approx. 200 L (54 US Gal) per 25 L distillation.*
• Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 6 kg (13.2 lb) of sugar**
• Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**

Boiler:

• Capacity: 25 L
• Dimenions: H 64 cm x W 36 cm x D 37 cm
• Weight: 5.42 kg
• Power: 2200W (1600W for US/CA Units)
• Warranty: 3 years

* When used with the Create+ Water Flow Regulator.
**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500 Reflux Condenser.
