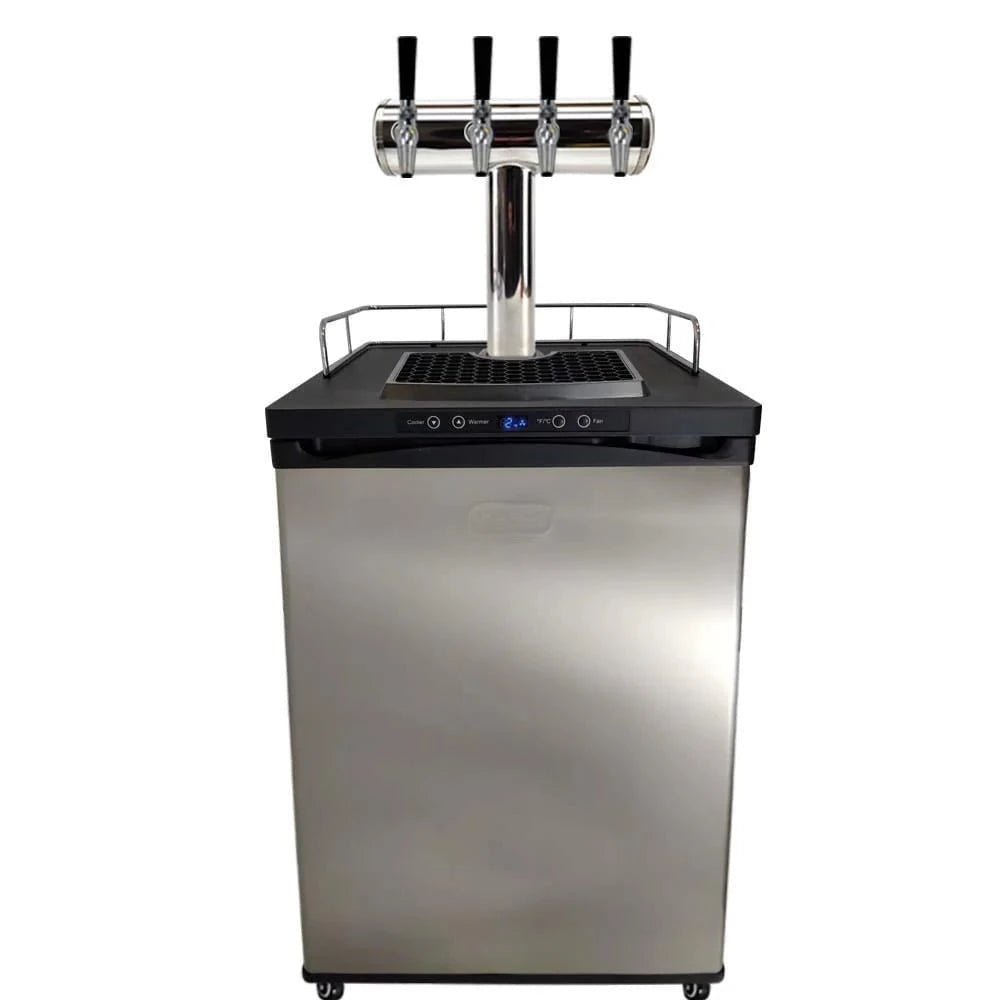

Series X.1 Kegerator Quadruple Tap T-BAR 4 Taps with T-BAR - Fits up to 4x 19L Ball Lock Corny Kegs

The is the perfect one-click solution for making sure you have all the necessary parts for a successful and hassle-free Kegerator setup. Our enthusiastic team members all have this pack in their homes, and for good reason - it includes everything you need aside from the CO2 and the kegs, and of course, the beer inside the kegs! See the detailed description below for more information on what's included.

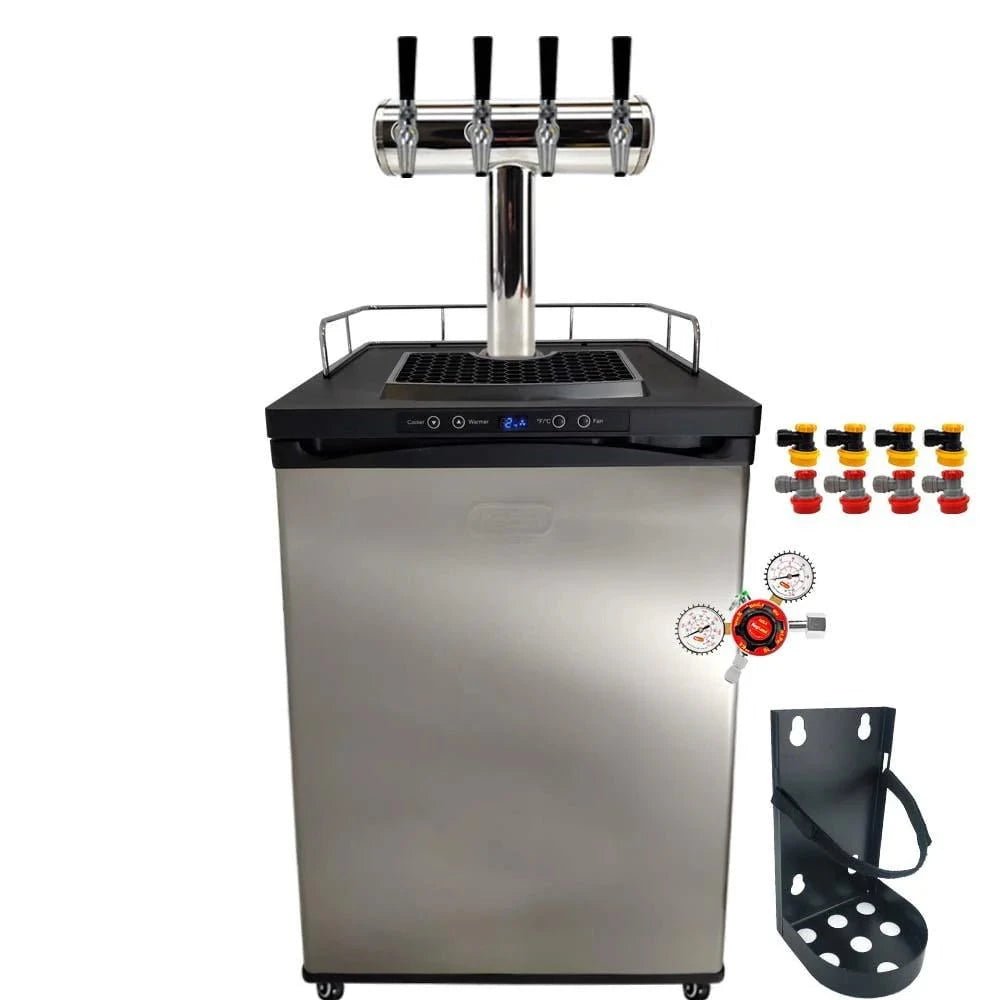

This Kit includes:

1 x Series X Base Model Kegerator Kit includes:

• 1 x MK4 Type 30 CO2 Regulator with 8mm duotight push in
• 1 x Black Plastic Wrap Around Drip Tray
• 1 x Set of 4 Castor Wheels + bolts. (2 x Front Locking, 2 Free Spinning)
• 1 x CO2 Cylinder Holder (designed to suit 2.6kg gas cylinder)
• 1 x Chrome Plated Guard Rail with rubber locking feet.
• 1 x Wire Shelf (included if you want to convert it back to a can/bottle fridge)
• 1 x NEW! Carbonation Chart Sticker

1 x Brushed Stainless 4 Tap T-BAR Font Kit includes:

• 1 x Stainless Steel T-BAR Brushed Font with caps and bolt dust cover.

• 4 x Phillips head mounting bolts for Font
• 4 x Black Plastic Tap Handles
• 4 x duotight compatible Short Shanks
• 4 x 6.5mm x 8mm duotight reducers
• 2 x Sets of 4mm x 8mm EVABarrier Hosing for both liquid and gas. Recommended length = 1.5m to 2.1m per tap. Any length for gas.
• 3 x 8mm duotight tee for gas hosing splitting
• 1 x 7 in 1 Tap Tool

4 x NukaTap Stainless Steel Taps
4 x duotight 8mm x Ball Lock Disconnect (Grey+Red/Gas)
4 x duotight 8mm x Ball Lock Disconnect (Black+Yellow/Liquid)

Just add 2.6kg CO2 Tank or 6kg CO2 Tank and 19L Kegs sold separately.

This kegerator will fit up to 4x 19L Kegs which you can purchase here.

And you can use either the 4L (2.6KG) CO2 with the included bracket on the back, or the larger 9L 6kg CO2 which you can stand beside the fridge.

Dimensions:

• 600mm Wide
• 650mm Deep excluding CO2 bracket
• 820mm Deep including CO2 bracket (only suitable for 2.6kg CO2 bottle)
• 840mm Height (excluding castor wheels and the height of guard rail, drip tray or font)
• 890mm Height of the fridge part (including castor wheels but excluding the height of guard rail, drip tray or font)

Temperature Set Points: -5 to 28°C

NB: the kegerator does not "heat", it only cools so if the set point is higher than the outside temperature, the fridge will stay the outside temperature. Additionally the internal temperature of the fridge is subject to its external environment, if it's 40°C and in the sun it won't cool efficiently in the same way a normal fridge would not cope well. Like a normal fridge, it's designed for indoor use rather than outdoors unless you are in an area that does not suffer from extreme temperatures or humidity (which is probably nowhere in Australia).

Minimum clearance around the Series X

The Series X kegerator has radiators in the left- and right-hand walls of the kegerator. These radiators need to be well ventilated so that heat can be dissipated from within the kegerator to the external environment. A minimum of 100mm clearance is required on the left- and right-hand side and the back of the kegerator. Failure to leave this clearance may void the warranty as it is essential for proper cooling and can cause high electrical consumption and may cause the kegerator to fail prematurely.
