Kegmaster Commercial Kegerator SUPER DELUXE Two Door Commercial Kegerator

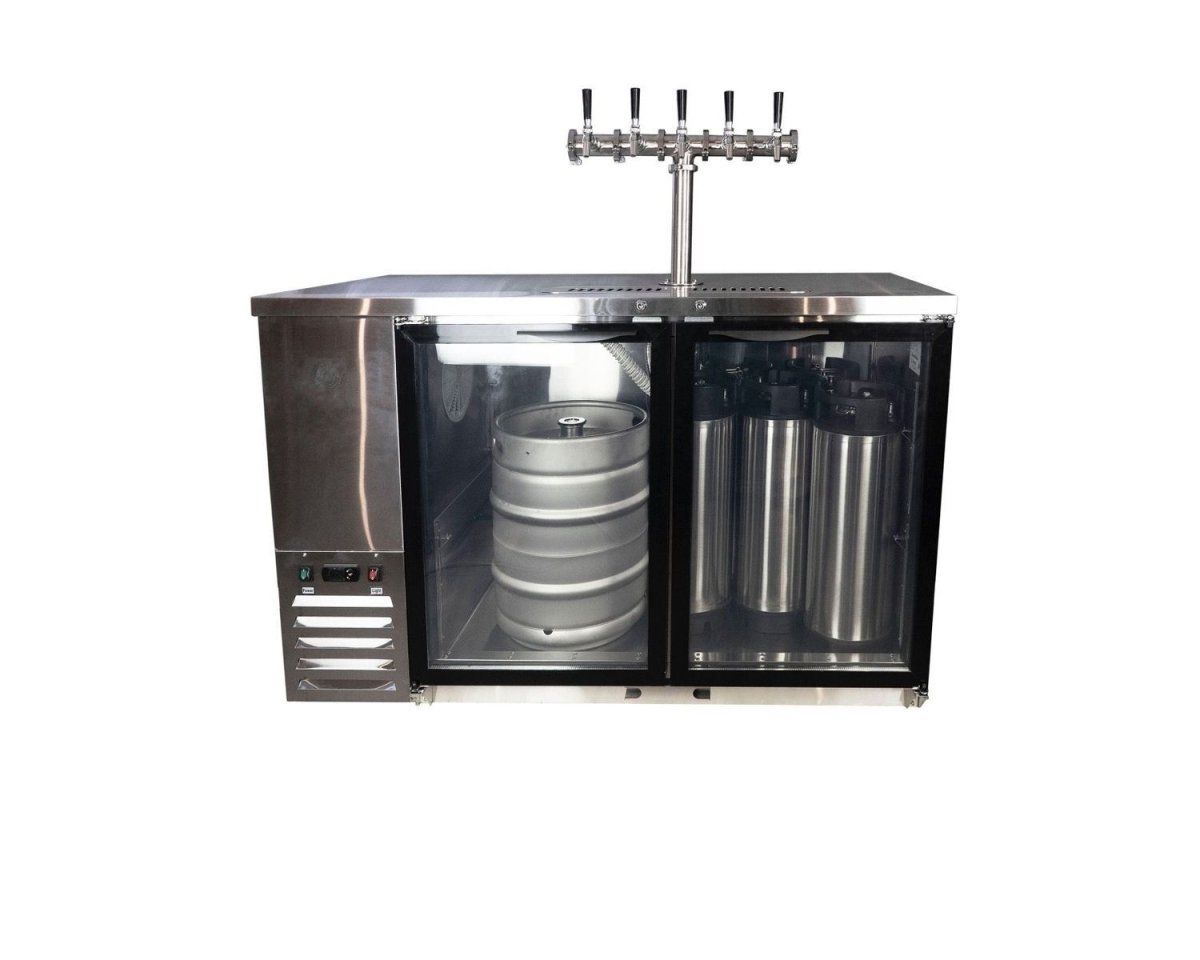

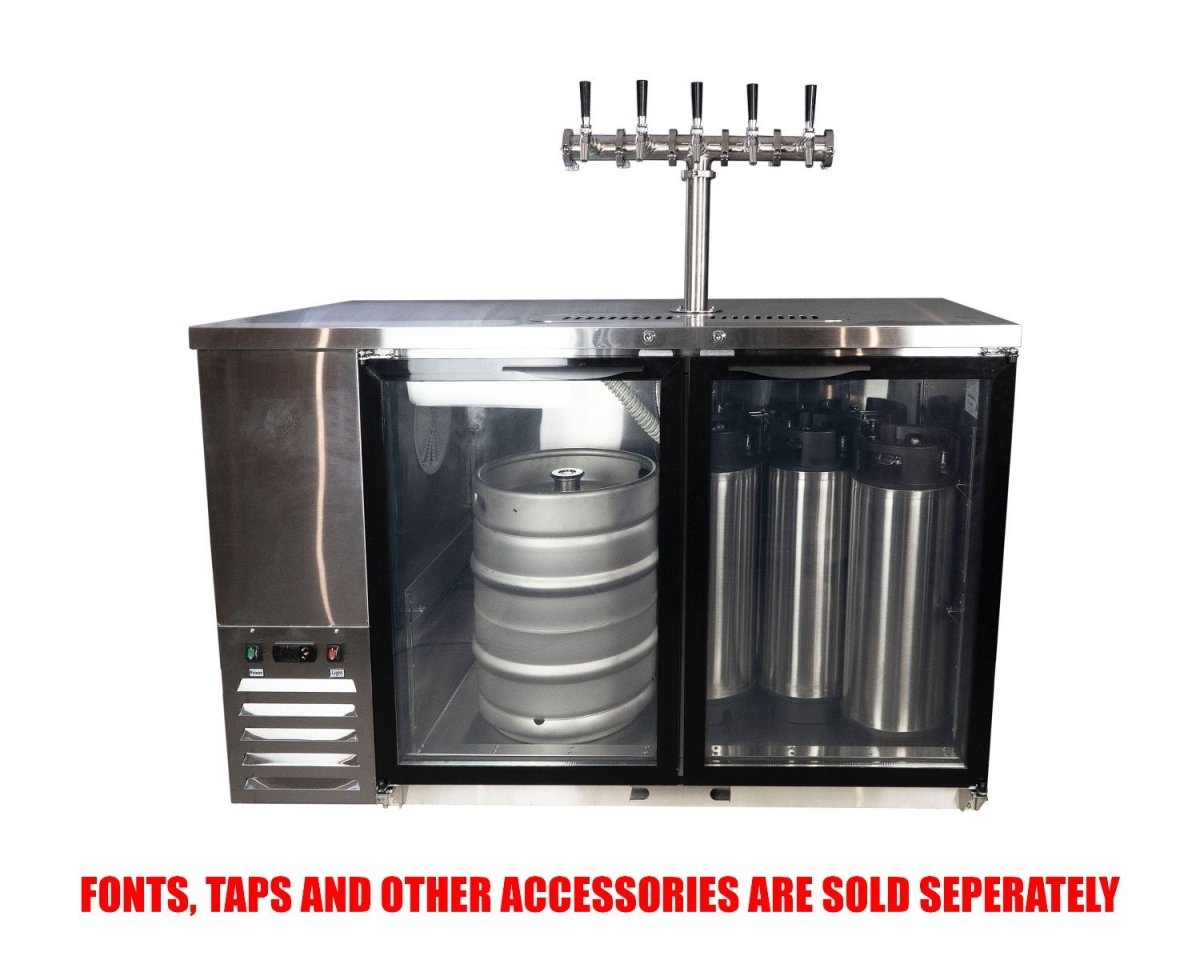

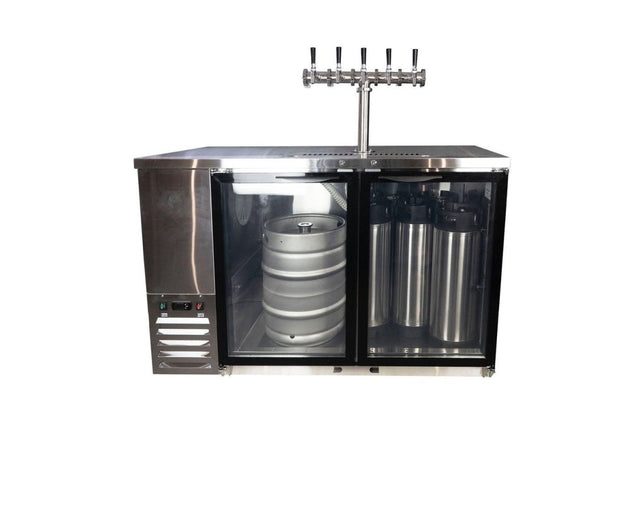

Super Deluxe TWO Door Commercial Kegerator

Super Deluxe is the highest end commercial grade, under counter, keg fridge you can find. Perfect for use within Australia because these powerful fridges have an ambient working temperature up to 43C.

Beer Tower / Font Options:

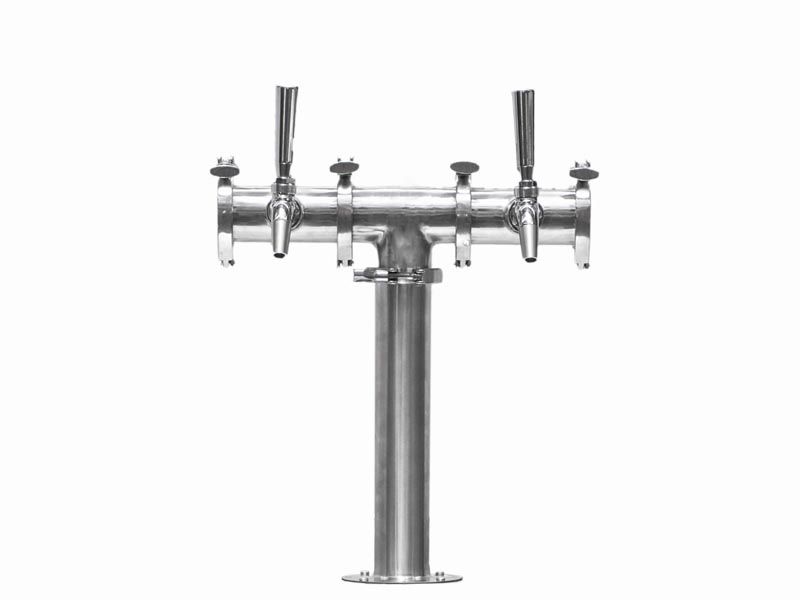

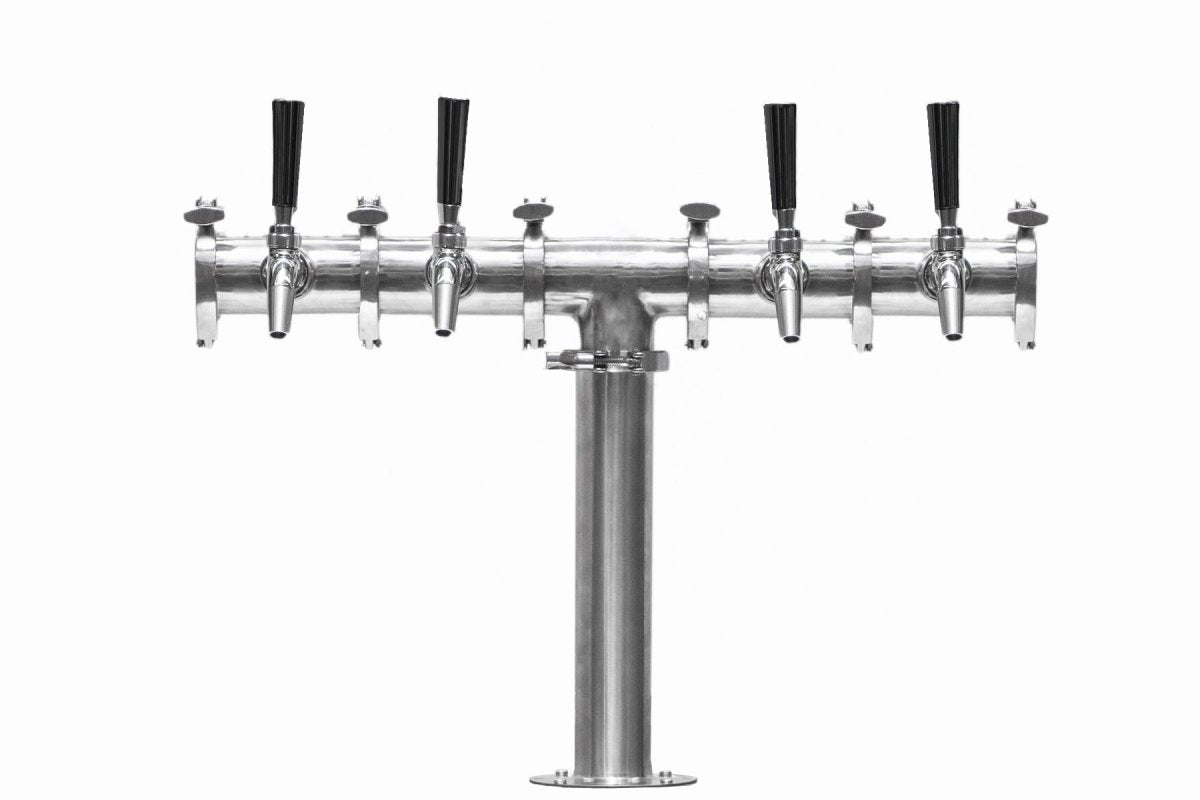

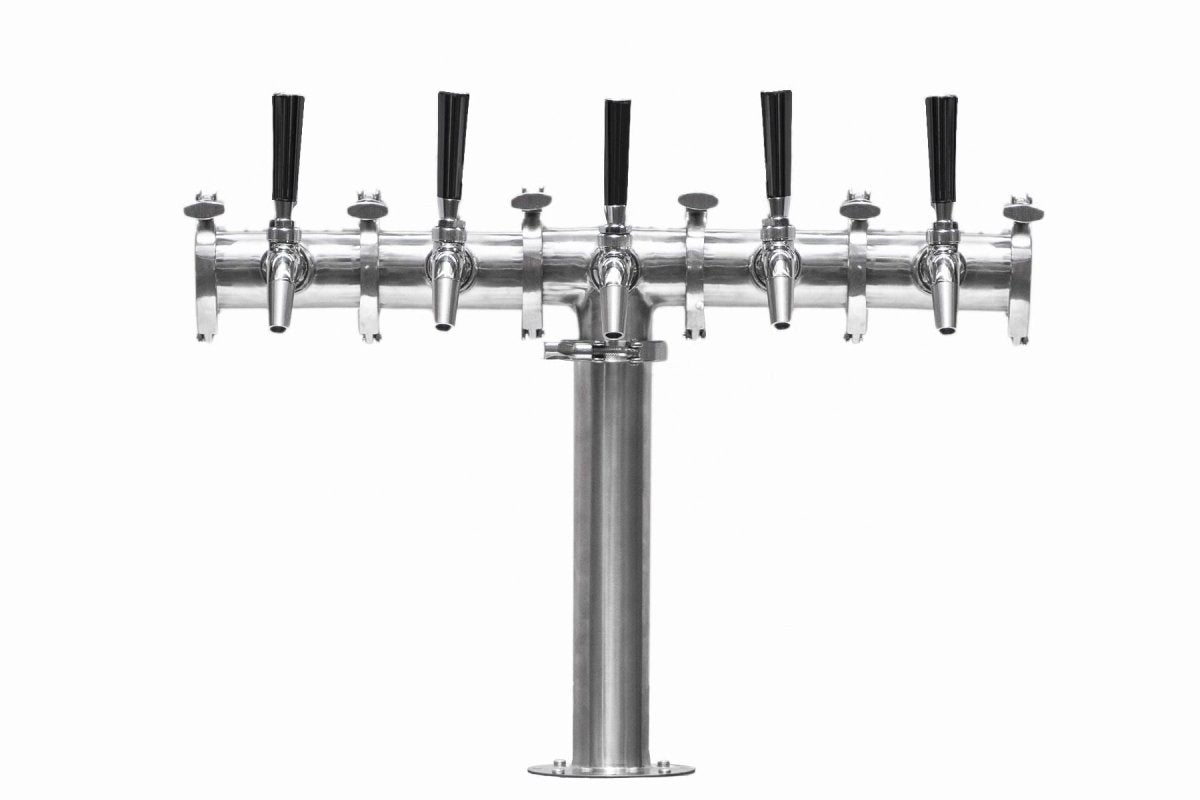

Options include getting the Fridge only, or a 1, 2, 3, 4 or 5 tap T-Bar Font / Beer Tower.

Features:

• Stainless steel exterior and interior (304SS internal and 430SS external)

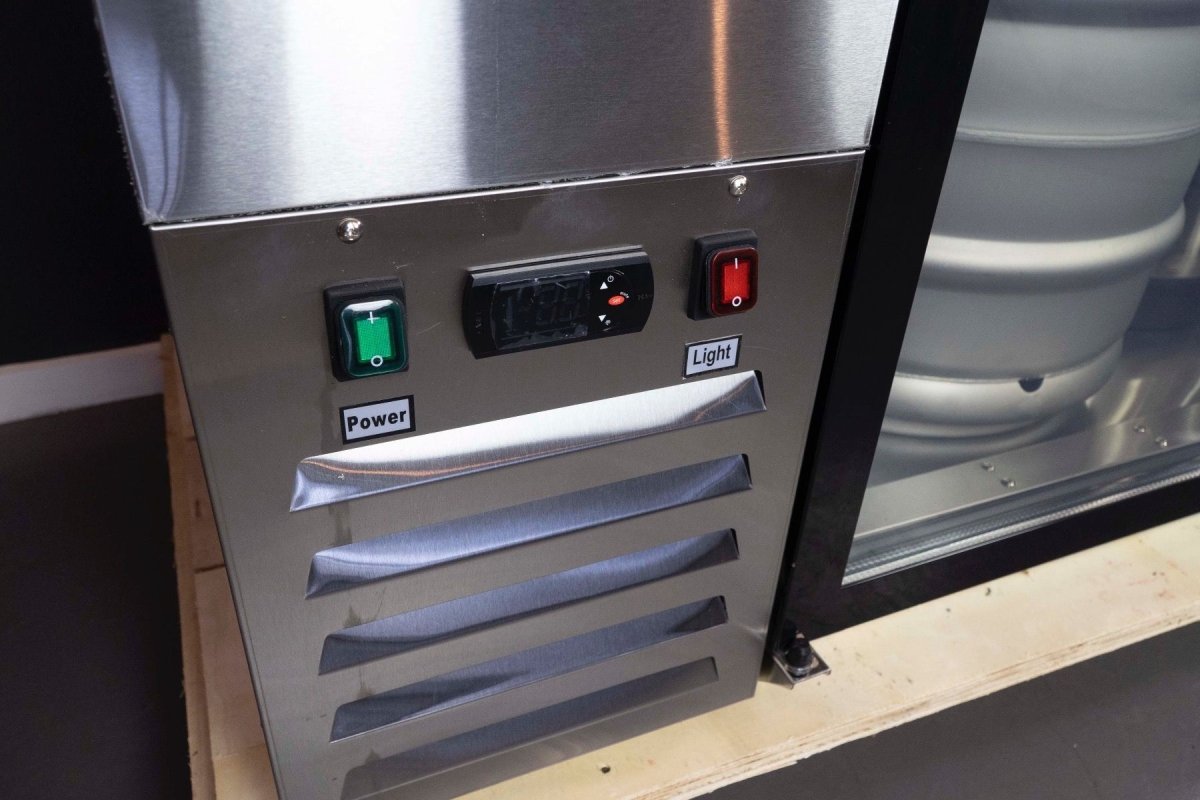

• Dixel digital controller
• Heavy duty Embraco compressor with environmentally friendly R290 refrigerant
• Slide out compressor assembly for easy maintenance
• Single counter top font port
• Single recessed drip tray with drainage

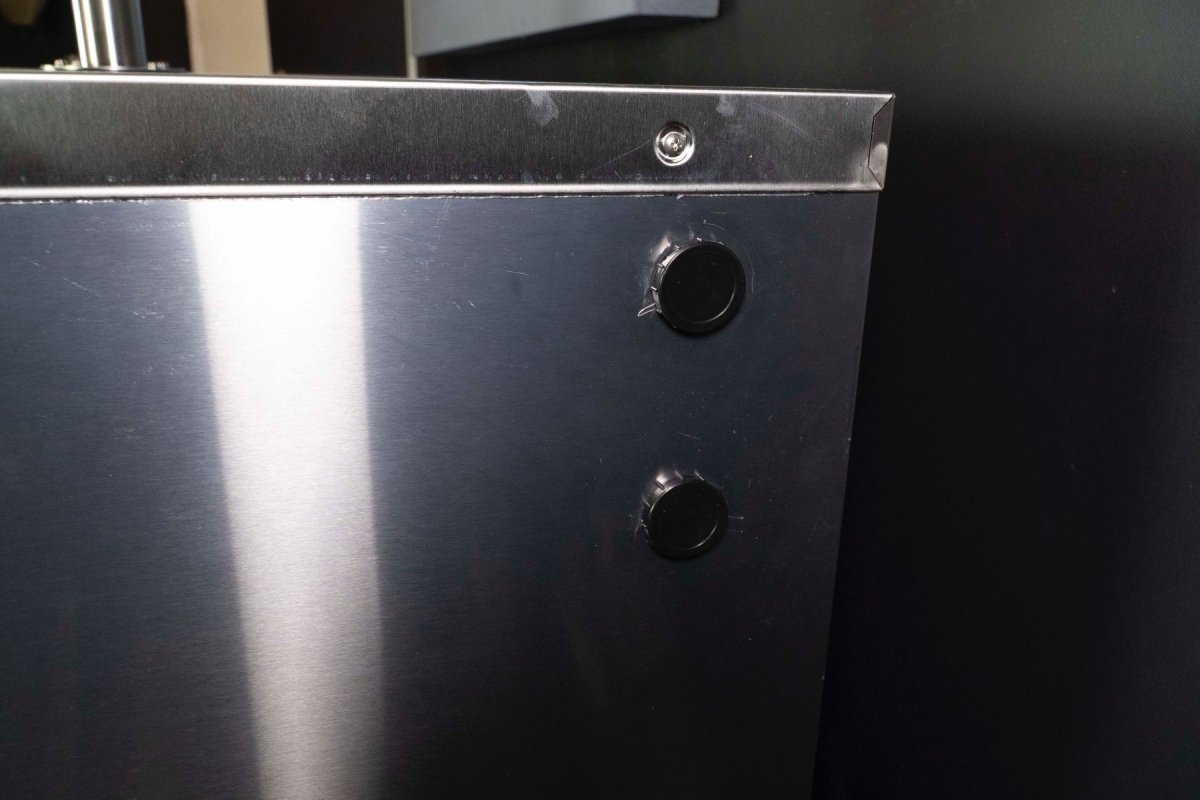

• Two gas ports located on the right side
• Recessed door handles
• Interior lights
• Magnetic door gaskets standard

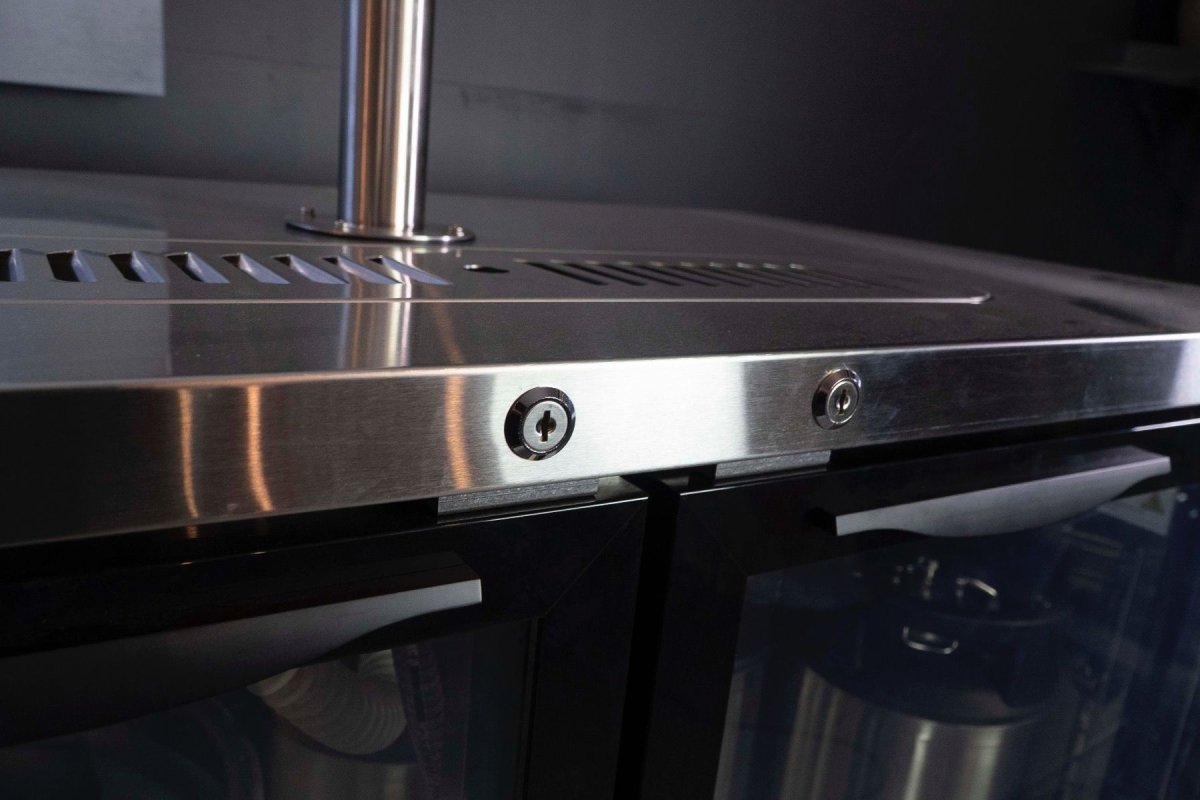

• Door lock standard
• Pre-installed castors
• 43°C Ambient Temp

Operating Info:

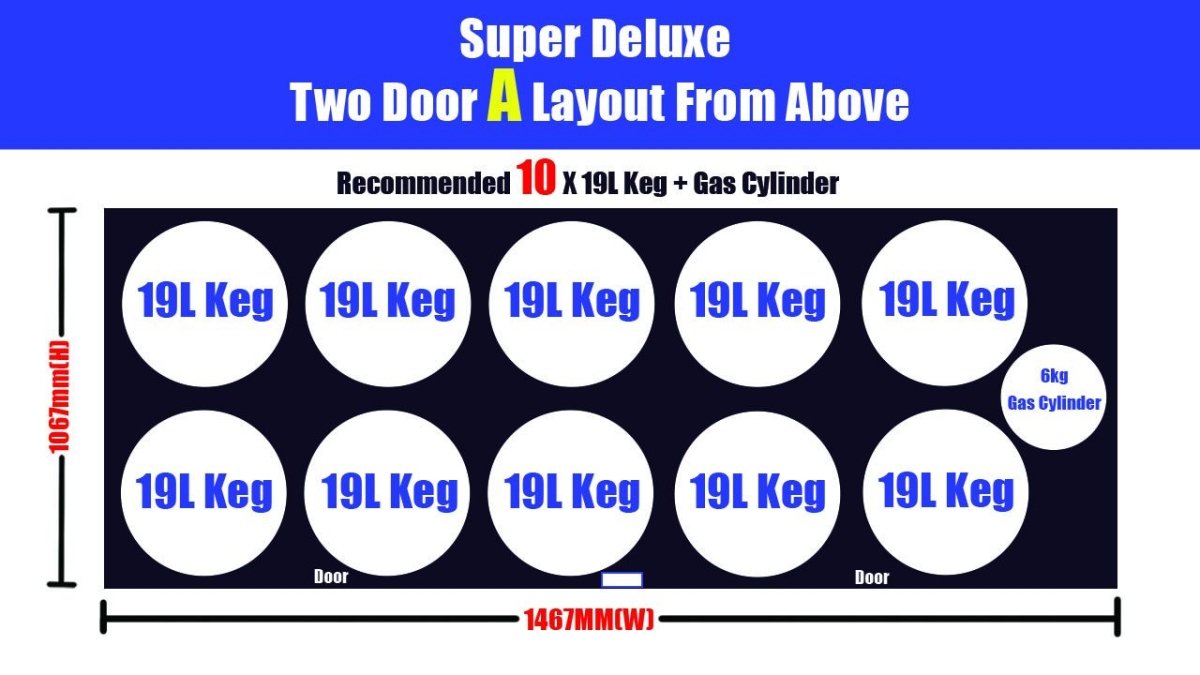

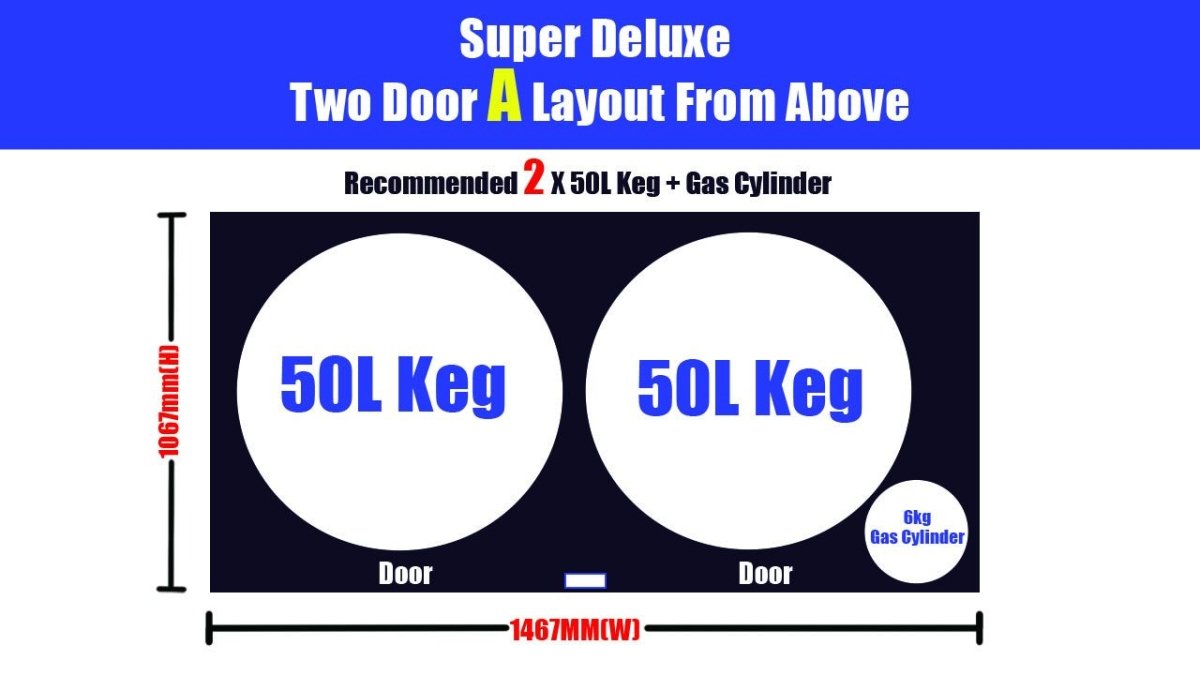

• Capacity: 390L 2x 50L Kegs and gas cylinder or 10x 19L kegs and gas cylinder

• Power: 400W

• Voltage: 220˜240V/50Hz

• Working Temp: 0 ˜ 10°C

• Ambient Temp: 43°C


Dimensions (External): W1467 x D714 x H1067mm, 95kg

Dimensions (Internal): W1090 x D550 x H820

Packing Dimensions: W1530 x D765 x H1150, 110kg

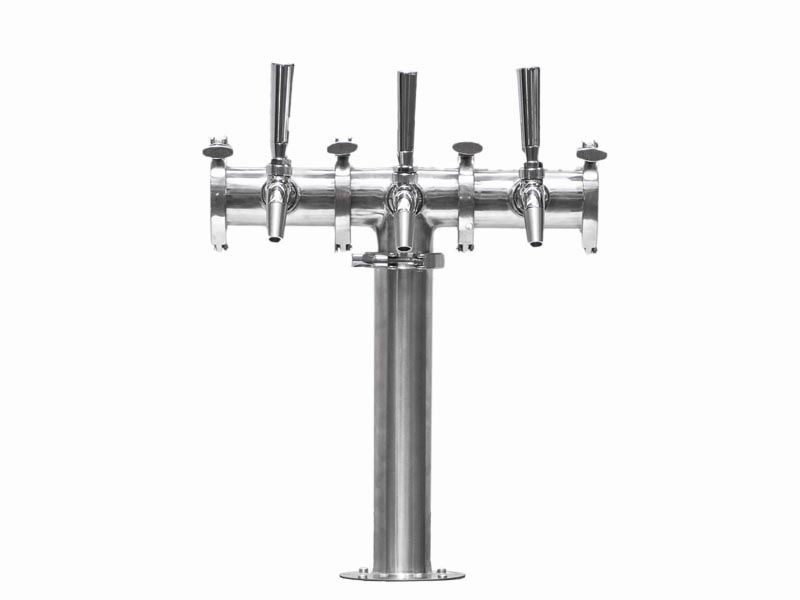

Beer Tower / Font Options

Our Font Tower kits provides a fantastic looking, professional finish to any bar or beverage sales location.

These fonts work great for mounting on these Super Deluxe series of professional grade under-bar fridges.

Each Modular Font is constructed from 304 Stainless Steel and manufactured to be assembled with 2 inch tri-clover fittings. These Modular Font Kits are designed to work with our 3/4 inch Kinglok fittings that provide users the ability to disconnect their taps quickly and easily for maintenance or cleaning.

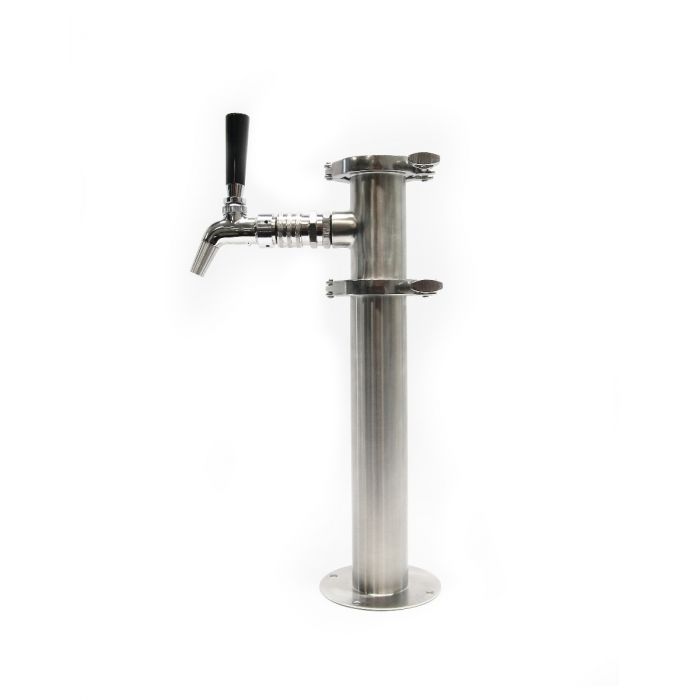

The Keg King Font Kits come with everything you need to set up a single tap modular font and includes the following:

• Ultratap/s
• Modular Font 2 inch Stand Pipe
• 2 inch Tri Clover Silicone o-ring Beaded Seal Double Sided
• 2 inch Tri Clover End Cap (no hole)
• 2 inch Tri Clover Equal Tee
• 2 inch Tri Clover Straight Extension - 3/4 Female
• KingLok Female x 3/4 Male (Font Adaptor)
• 2 inch Tri Clover Clamps
• SL6 washer
• 6mm Angle barbtail Stainless Steel
• Kinglok Male x Tap Shank Adaptor
• Beer Line Set
• Premium Liquid Disconnect Black
• Premium Gas Disconnect Grey

Specifications:

Material = 304 Stainless Steel

Dimensions:

Height = 360mm to top of font (not including tap handles)

Width = 330mm

PLEASE NOTE:  The 3/4inch Male threading on the KingLok fitting contains a black silcone o-ring at the top of the threads. This o-ring DOES NOT need to seal up against the top of the 3/4inch female modular font port. The o-ring will normally sit slightly above because of the Kinglok fitting compressing against the SL6 washer. This is normal. If you find the o-ring visually displeasing you can remove it from the Kinglok fitting.

If you have your fridge mounted under a bench, we recommend using our Under-Bench Telescopic Font Adaptor.

ABOUT THE Under Bench Telescopic SS Font Adaptor

This is the simple way to connect the top of the kegerator to the underside of a countertop or bar, then mount your font and tap array to the top of the countertop or bar.

This telescopic stainless steel part will allow the font fan hose to keep the font and lines cold and return the cold air back to the kegerator without leaks.

Simply use the template included on the box to drill your countertop with the appropriate holes: x1 38mm hole for the lines and font fan hose, x4 7mm holes for the screws in the font base.

The top portion of the telescopic adaptor will sit on your counter top with the gasket and font.

The bottom portion will attach to a gasket on your kegerator font port underneath the countertop or bar.

Our Telescopic Font Adapter will provide you with approx 120mm of space clearance between the top of the kegerator and the underside of the countertop.
